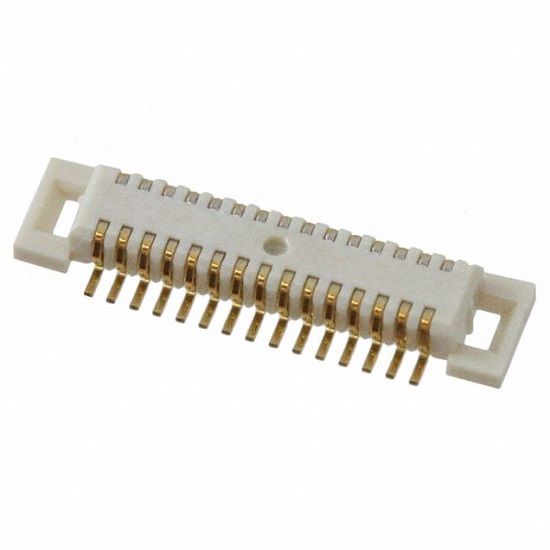

The AXK6F20347YG is a narrow-pitch, surface-mount (SMD) board-to-board and board-to-FPC male header from the P5KF series manufactured by Panasonic Industry, featuring 20 gold-plated signal pins arranged in a double-row layout with a 0.5 mm terminal pitch and a low body profile height of 1.25 mm. This standard-type vertical connector is designed without positioning bosses or soldering terminals on its base, relying on precise automated placement and automated reflow assembly for board retention. Optimized for tight footprints in mobile devices and compact industrial equipment, it operates across a temperature range of -55°C to +85°C with a maximum electrical rating of 0.5 A per pin (up to 10 A total across all contacts) and a voltage rating of 60 V. When mated with its corresponding socket partner (such as the AXK5F20347YG), it achieves an ultra-low mated stack height of 1.5 mm (or up to 2.0 mm depending on the mated socket configuration).
