Full descriptions
Technical Specifications

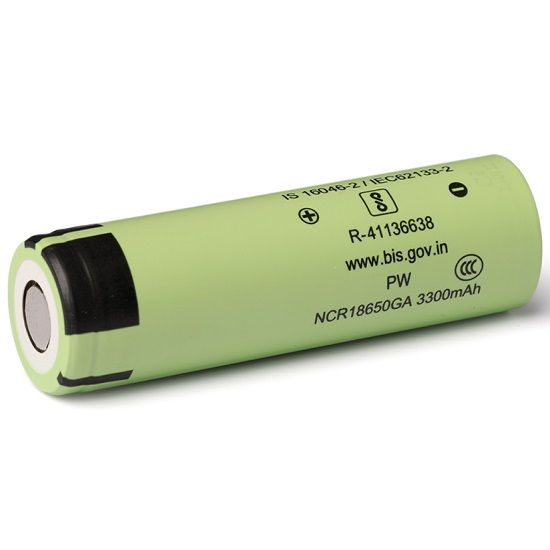

Model: NCR18650GA
Cell Type: Lithium-ion rechargeable battery
Dimensions: 18 × 65 mm (18650 standard size)
Nominal Capacity: 3300 mAh
Nominal Voltage: 3.6 V
Full Charge Voltage: 4.2 V
Minimum Discharge Voltage: 2.5 V
Standard Charging Current: 1.675 A
Maximum Charging Current: 3.35 A
Maximum Continuous Discharge Current: 10 A (at 25°C)
Approximate Full Charge Time (0–100%)
With standard charger: about 2.5–3 hours
With fast charger: about 1.5–2 hours
Approximate Weight: 48 g
Operating Temperature (Charging): 0°C to 45°C
Operating Temperature (Discharging): –20°C to 60°C
Applications
Laptop and power bank battery packs / electric bicycle and scooter battery packs / home energy storage systems and UPS units / flashlights and high-drain electronic devices
⚠️ Safety Note
This battery does not have an internal protection circuit. For safe operation, it must be used within a battery pack that includes a Battery Management System (BMS) or a protection circuit to prevent overcharging, over-discharging, and overcurrent.
